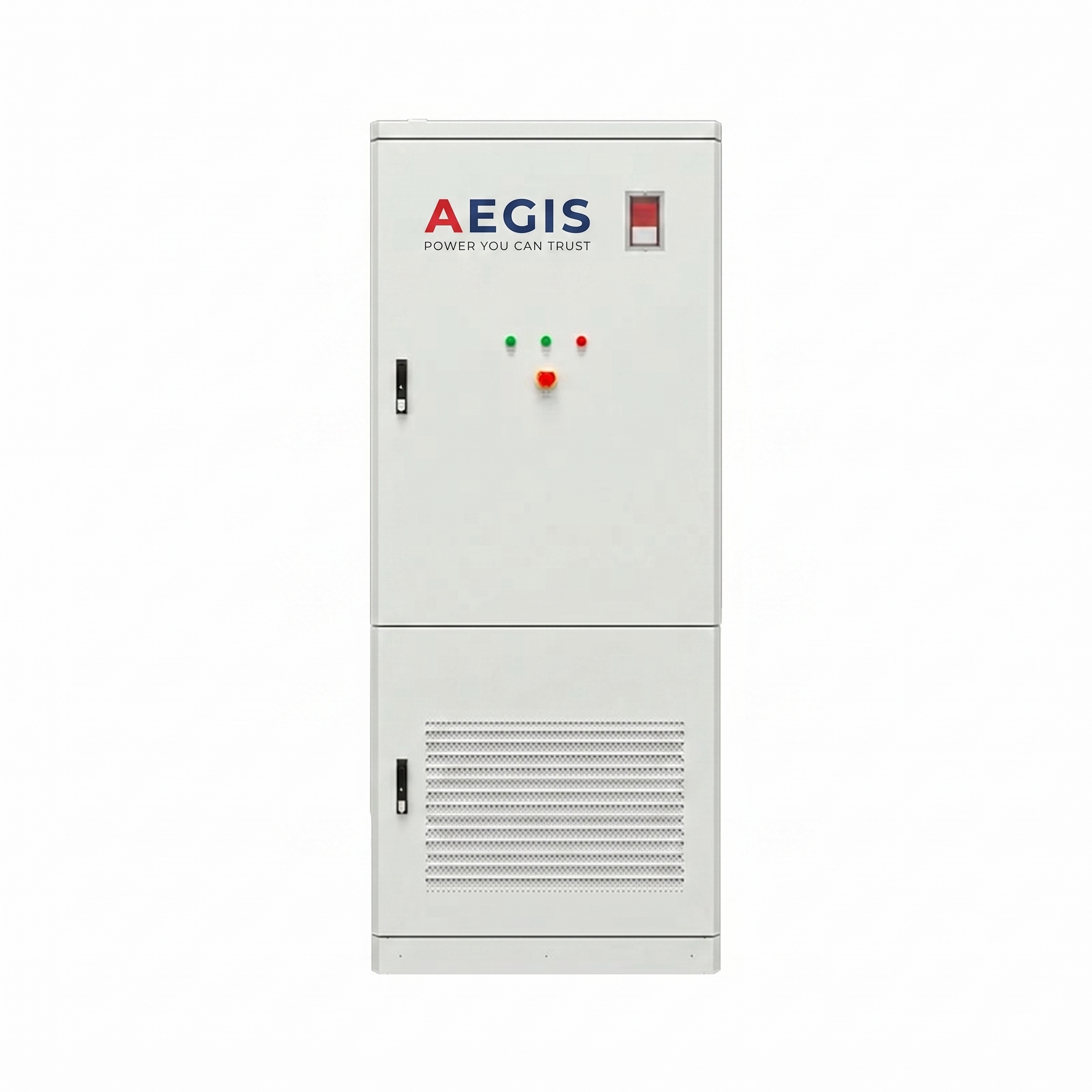

AEGIS CI-241 | 241kWh Commercial & Industrial ESS
LiFePO4 · 768V · 125kW · IP54 · Air Cooled
Key Specifications
- Voltage
- 768V
- Energy
- 241kWh
- Warranty
- 10 Years
- IP Rating
- IP54
- Certifications
- CE, IEC 62619, UN38.3
Technical Specifications
| Parameter | Specification |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 768V |
| Nominal Capacity | 314Ah |
| Energy | 241kWh |
| Max Charge Current | 200A |
| Max Discharge Current | 200A (125kW) |
| Round-Trip Efficiency | ≥98% |
| Operating Temperature | -30°C ~ 55°C |
| Dimensions (L×W×H) | 1300 × 1200 × 2400 mm |
| Weight | ~2500 kg |
| IP Rating | IP54 |
| BMS | Rack-Level + System-Level BMS |
| Communication | RS485, Modbus TCP/IP |
| Warranty | 10 Years |
| Certifications | CE, IEC 62619, UN38.3 |
Product Overview
The AEGIS CI-241 is a 241kWh commercial and industrial energy storage system designed for businesses, factories, telecom infrastructure, and large-scale solar installations.
With 125kW continuous output power and 241kWh of stored energy, this system handles commercial peak shaving, demand charge reduction, backup power, and solar self-consumption optimization. The air-cooled design keeps maintenance costs low while delivering reliable performance across a wide temperature range.
Every rack integrates its own BMS module, while a system-level BMS coordinates across all racks for optimal charge/discharge balancing. Remote monitoring via EMS cloud platform provides real-time visibility into system health, SOC, temperature, and alarm status.
Built with Grade A LiFePO4 cells from our own production line, the CI-241 is backed by our 10-year product warranty and dedicated C&I after-sales engineering support.
On-site commissioning support available for large projects
Our engineering team provides remote or on-site installation guidance for C&I deployments
