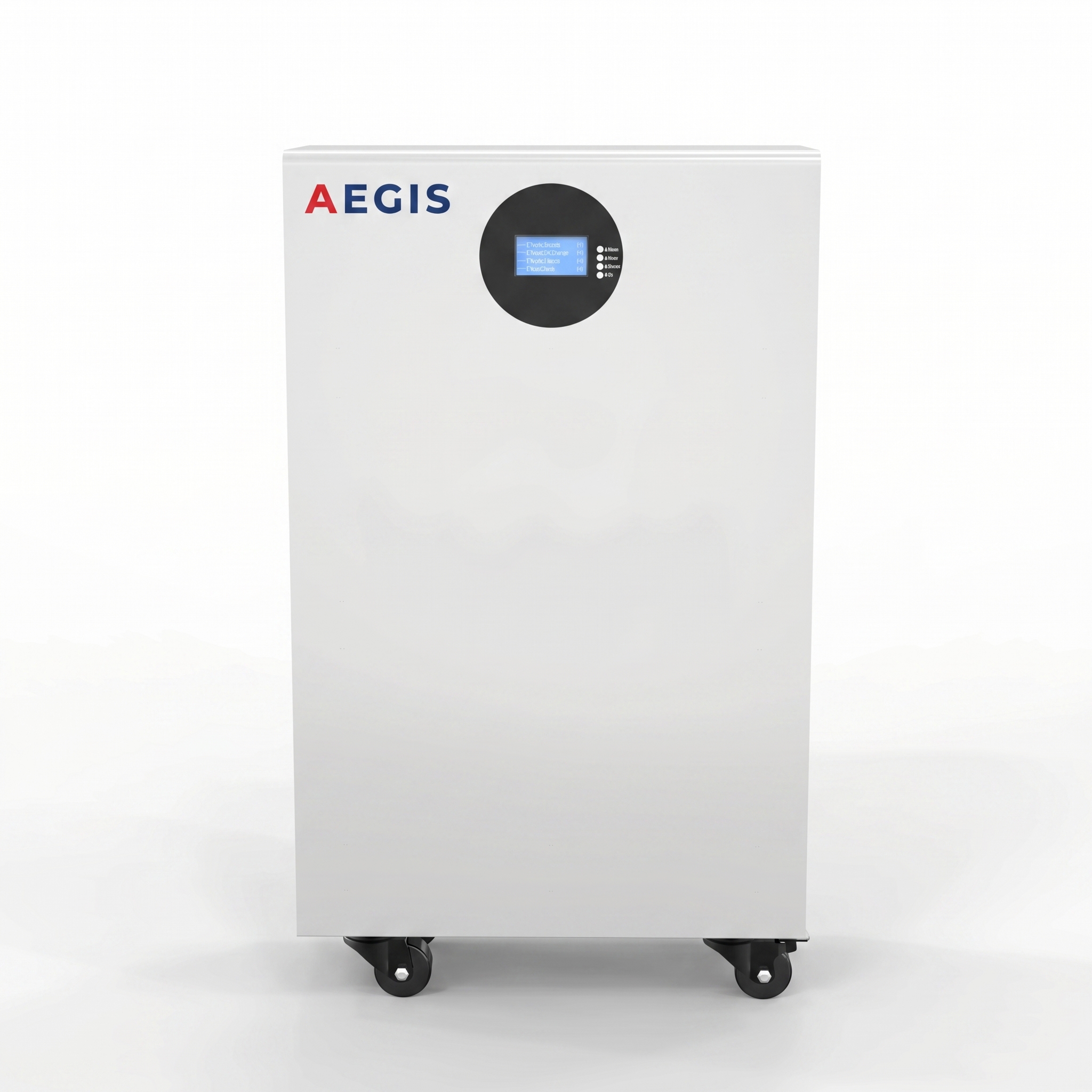

AEGIS RES-16K | 16kWh Wall-Mounted Home Battery
LiFePO4 · 51.2V 314Ah · 6000~8000 Cycles · Smart BMS · 10-Year Warranty
Key Specifications
- Voltage
- 51.2V
- Energy
- 16.07kWh
- Cycle Life
- 6000~8000 cycles @90% DOD
- Warranty
- 10 Years
- IP Rating
- IP65
- Certifications
- CE, IEC 62619, UN38.3
Technical Specifications
| Parameter | Specification |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 314Ah |
| Energy | 16.07kWh |
| Max Charge Current | 100A |
| Max Discharge Current | 200A |
| Cycle Life | 6000~8000 cycles @90% DOD |
| Operating Temperature | Charge: 0~55°C / Discharge: -10~55°C |
| Storage Temperature | -20~60°C |
| Dimensions (L×W×H) | 850 × 583 × 260 mm |
| Weight | 130 kg |
| IP Rating | IP65 |
| BMS | Built-in Smart BMS |
| Communication | RS485, CAN |
| Mounting Type | Wall-Mounted |
| Parallel Capability | Up to 16 units |
| Inverter Compatibility | Deye, Growatt, Victron, SMA, Goodwe |
| Warranty | 10 Years |
| Certifications | CE, IEC 62619, UN38.3 |
Product Overview
The AEGIS RES-16K is the highest-capacity wall-mounted battery in our residential lineup. At 16.07kWh of stored energy from 314Ah Grade A LiFePO4 cells, it pushes the boundary of what’s possible in a wall-mounted form factor — ideal for energy-intensive households or small commercial applications.
With 200A max discharge current, the RES-16K handles high-demand loads like air conditioning, water heaters, and workshop equipment without breaking a sweat. The robust 800 × 523 × 260mm chassis is engineered for wall mounting while keeping all connections accessible.
The integrated smart BMS handles all protection functions automatically — overcharge, over-discharge, overcurrent, and temperature management. Expandable up to 16 units in parallel for properties that need multi-unit systems. Compatible with Deye, Growatt, Victron, SMA, Goodwe and other major inverter brands.
Built with Grade A LiFePO4 cells from our own production line, the RES-16K delivers 6000~8000 cycles at 90% DOD, backed by our 10-year product warranty and dedicated after-sales support.
Free sample available for qualified distributors
7-day sample delivery, deductible from first bulk order
