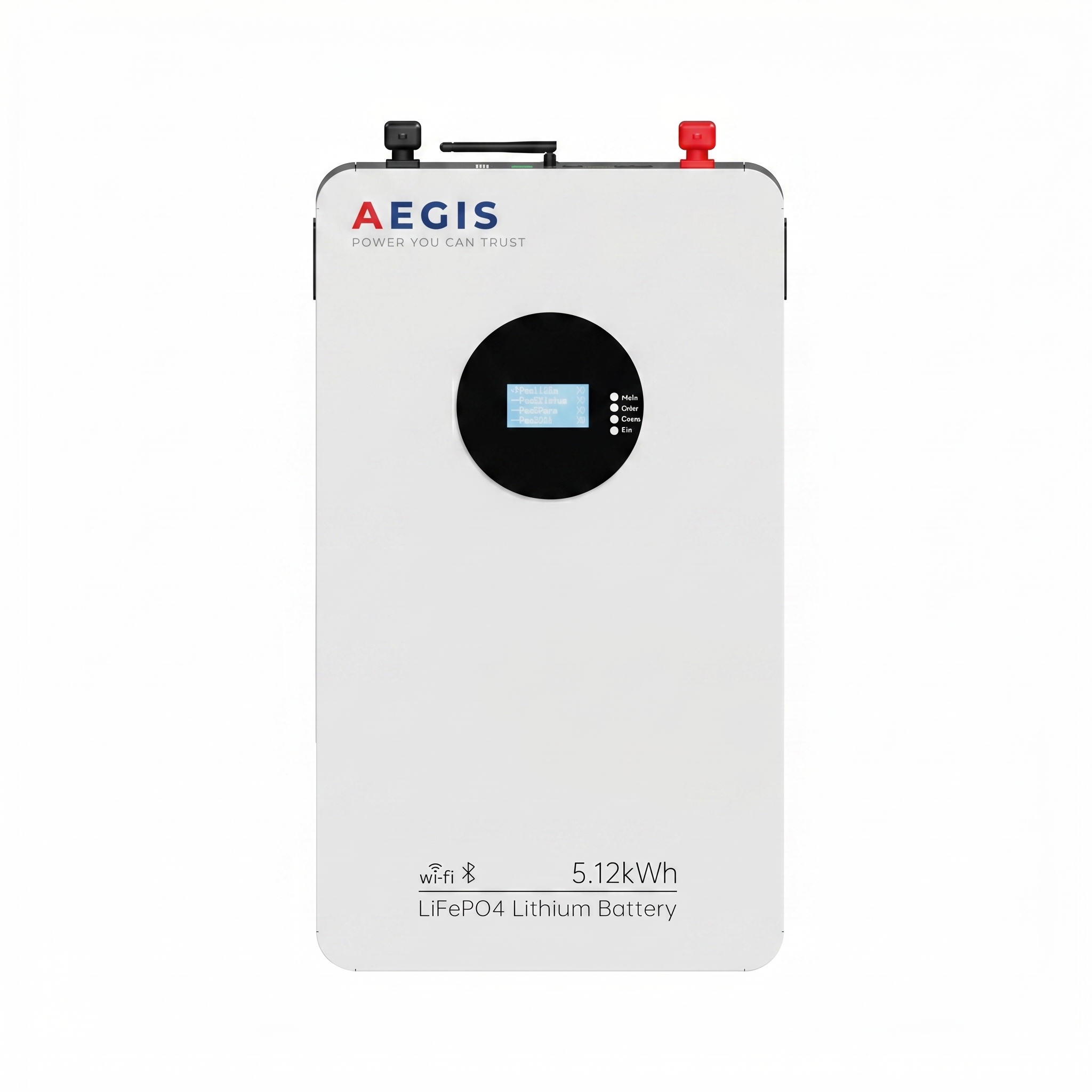

AEGIS RES-5K | 5kWh Wall-Mounted Home Battery
LiFePO4 · 51.2V 100Ah · 6000~8000 Cycles · Smart BMS · 10-Year Warranty
Key Specifications
- Voltage
- 51.2V
- Energy
- 5.12kWh
- Cycle Life
- 6000~8000 cycles @90% DOD
- Warranty
- 10 Years
- IP Rating
- IP65
- Certifications
- CE, IEC 62619, UN38.3
Technical Specifications
| Parameter | Specification |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Energy | 5.12kWh |
| Max Charge Current | 100A |
| Max Discharge Current | 100A |
| Cycle Life | 6000~8000 cycles @90% DOD |
| Operating Temperature | Charge: 0~55°C / Discharge: -10~55°C |
| Storage Temperature | -20~60°C |
| Dimensions (L×W×H) | 600 × 370 × 170 mm |
| Weight | 44 kg |
| IP Rating | IP65 |
| BMS | Built-in Smart BMS |
| Communication | RS485, CAN |
| Mounting Type | Wall-Mounted |
| Parallel Capability | Up to 16 units |
| Inverter Compatibility | Deye, Growatt, Victron, SMA, Goodwe |
| Warranty | 10 Years |
| Certifications | CE, IEC 62619, UN38.3 |
Product Overview
The AEGIS 5kWh wall-mounted home battery system delivers reliable, clean energy storage for residential solar installations. Built with Grade A LiFePO4 cells produced in our own facility, this compact unit mounts directly to your wall, saving valuable floor space while providing years of dependable power backup.
Designed for compatibility with all major inverter brands, the system integrates seamlessly into new or existing solar setups. The intelligent BMS continuously monitors cell voltage, temperature, and current — providing overcharge, over-discharge, and short-circuit protection automatically.
With 6000~8000 charge cycles at 90% depth of discharge, this battery is engineered to deliver consistent performance for a decade or more, backed by our 10-year product warranty and dedicated after-sales support.
Free sample available for qualified distributors
7-day sample delivery, deductible from first bulk order
