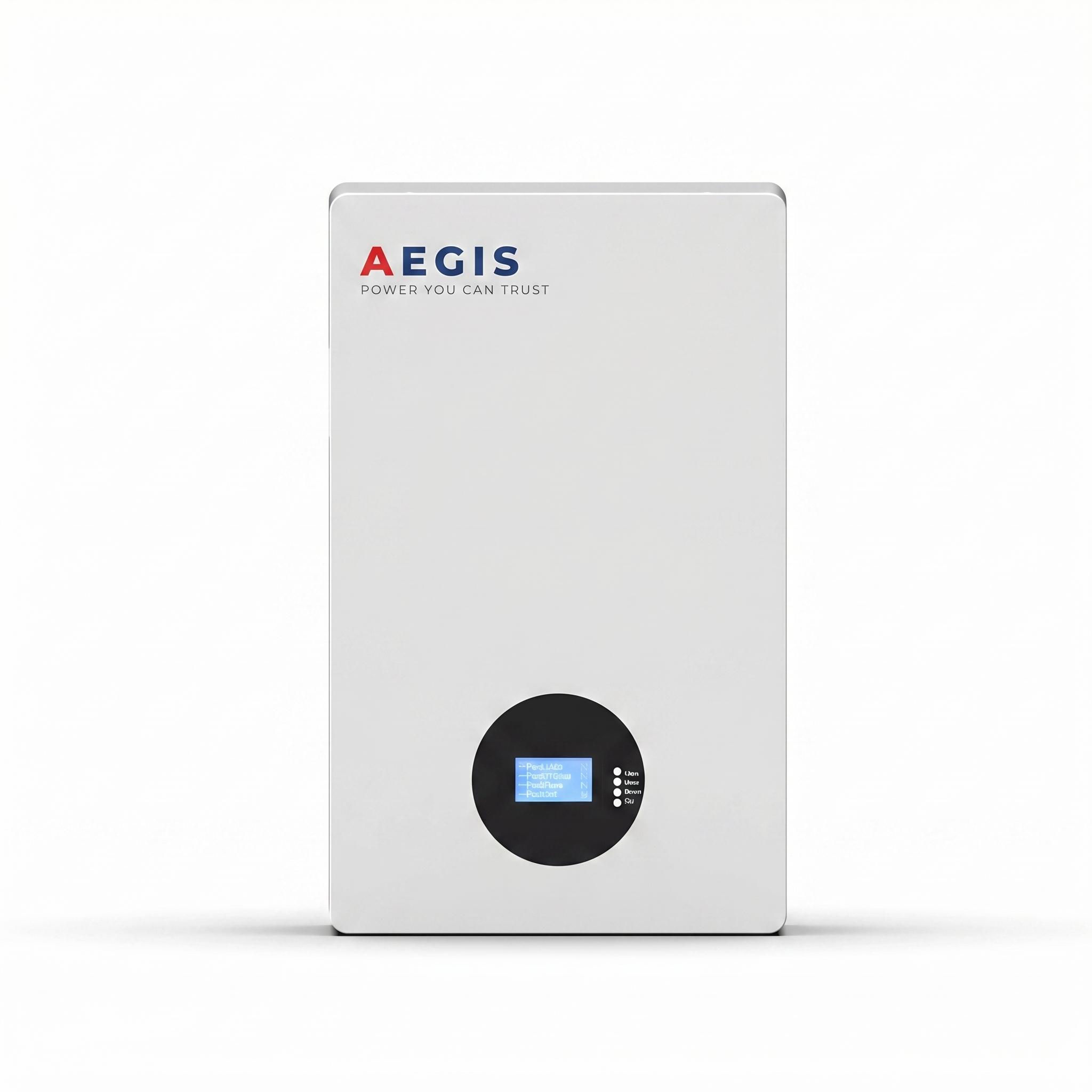

AEGIS WM-5K-LV | 5.12kWh Low-Voltage Wall-Mounted Battery

LiFePO4 · 25.6V 200Ah · Wall-Mounted · 6000~8000 Cycles · Smart BMS

Key Specifications

Voltage: 25.6V
Energy: 5.12kWh
Cycle Life: 6000~8000 cycles @90% DOD
Warranty: 10 Years
IP Rating: IP65
Certifications: CE, IEC 62619, UN38.3

Technical Specifications

Parameter	Specification
Battery Type	LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage	25.6V
Nominal Capacity	200Ah
Energy	5.12kWh
Max Charge Current	100A
Max Discharge Current	200A
Cycle Life	6000~8000 cycles @90% DOD
Operating Temperature	Charge: 0~55°C / Discharge: -10~55°C
Storage Temperature	-20~60°C
Dimensions (L×W×H)	600 × 370 × 170 mm
Weight	44 kg
IP Rating	IP65
BMS	Built-in Smart BMS
Communication	RS485, CAN
Mounting Type	Wall-Mounted
Parallel Capability	Up to 16 units
Warranty	10 Years
Certifications	CE, IEC 62619, UN38.3

Product Overview

The AEGIS WM-5K-LV delivers 5.12kWh of energy storage at 25.6V — making it compatible with a wide range of affordable 24V inverters commonly used in off-grid African and Southeast Asian markets.

At 200Ah capacity in a 600 × 370 × 170mm wall-mounted form factor, it delivers excellent energy density while keeping installation simple. The 8S-1P configuration means lower voltage throughout the system — inherently safer for residential environments.

The integrated smart BMS provides comprehensive protection including overcharge, over-discharge, overcurrent, short-circuit, and temperature management. Expandable up to 16 units in parallel for growing energy needs.

Built with Grade A LiFePO4 cells from our own production line, the WM-5K-LV delivers 6000~8000 cycles at 90% DOD, backed by our 10-year product warranty.

Free sample available for qualified distributors

7-day sample delivery, deductible from first bulk order

Why Partner With AEGIS

Dedicated account manager for every partner

Marketing material support (product images, videos, brochures)

Flexible MOQ — start with as few as 10 units

Door-to-door shipping to major African ports

12-month defective product free replacement

Get a Quote for This Product
